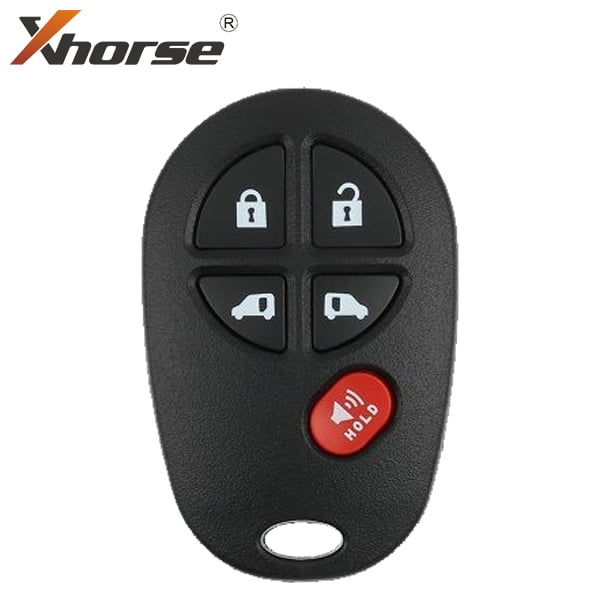

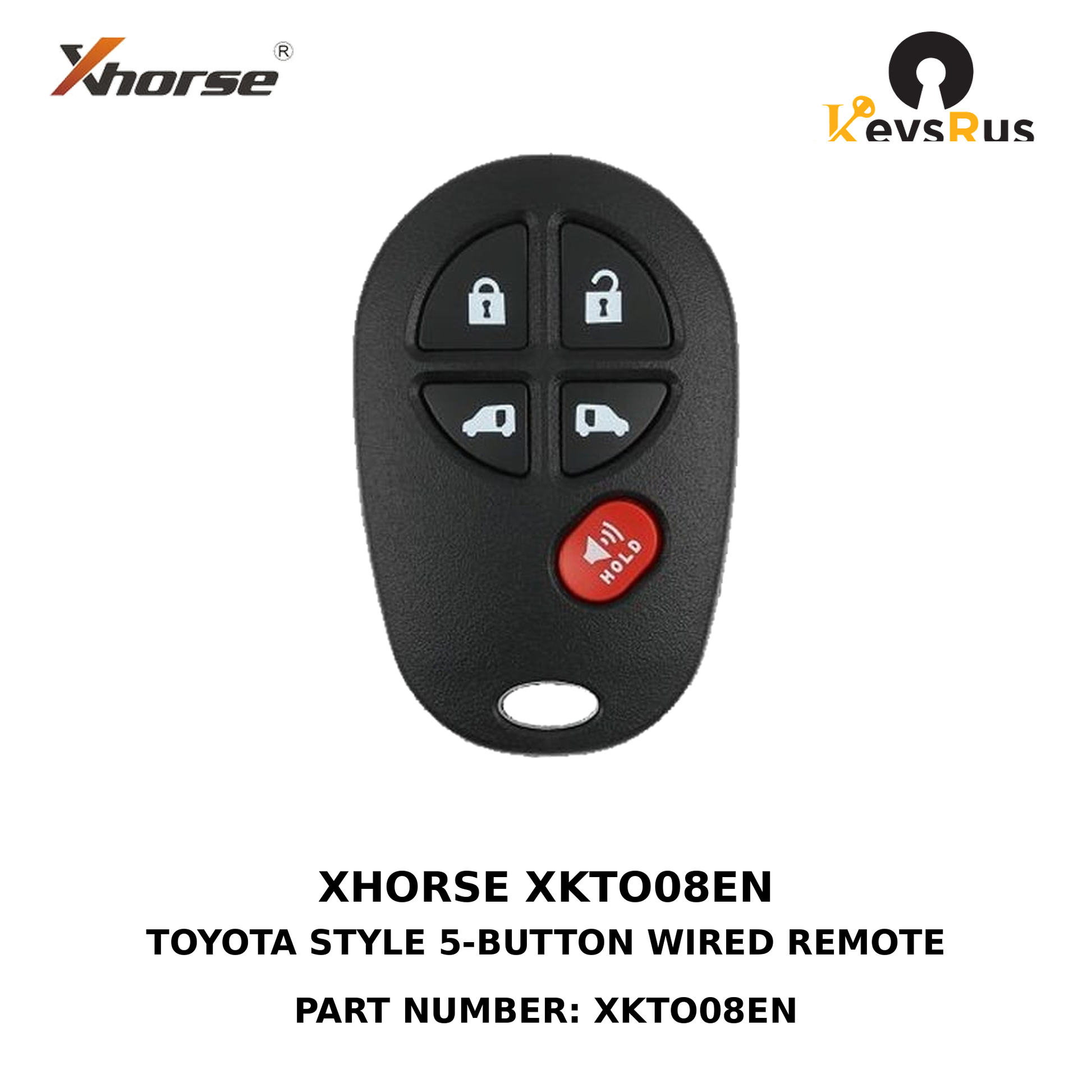

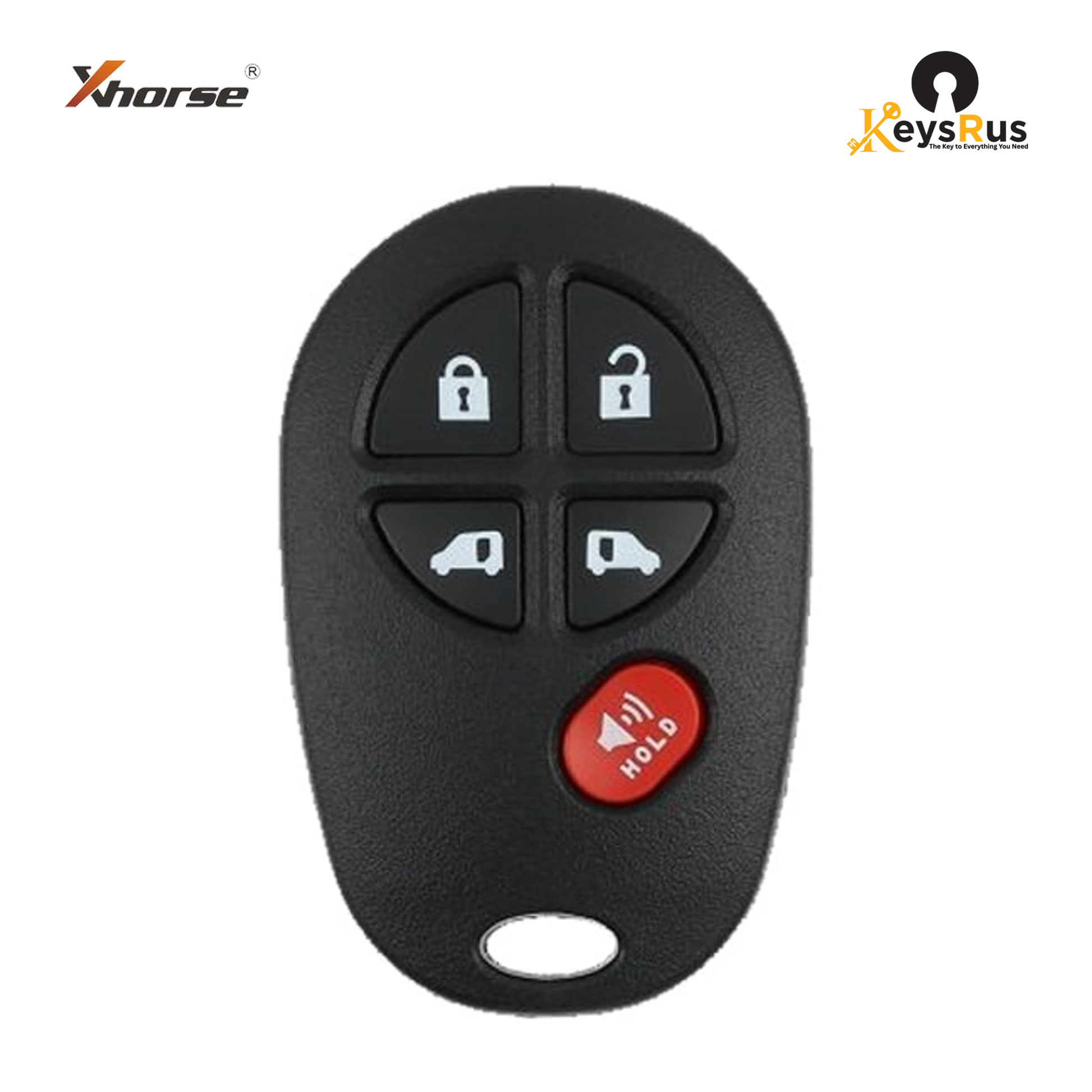

The Xhorse XKTO08EN is a 5-button universal remote in a Toyota-style layout, designed specifically for use with the VVDI Key Tool. This wired remote offers reliable performance and ease of programming via direct data cable connection, making it a go-to option for locksmiths and automotive professionals.
Featuring buttons for Lock, Unlock, Left Slide, Right Slide, and Panic, this remote provides full functionality once generated and programmed to your vehicle.
Note: CR2032 battery required (not included). Chip and blade sold separately.
🔧 Key Features:
-
Model: XKTO08EN
-
Style: Toyota 5-Button Remote
-
Buttons: Lock, Unlock, Left Slide Door, Right Slide Door, Panic
-
Type: Wired Remote (Not wireless)
-
Battery: CR2032 (not included)
-
Programming Tool Compatibility: VVDI Key Tool, Key Tool Max, Mini Key Tool
-
Connection: Uses included data cable to connect to VVDI device
📋 Programming Instructions:
-
Open the remote and remove the battery
-
Connect the data cable to the white connector on the PCB board
-
Plug the cable into your VVDI Key Tool
-
On the VVDI tool, select “Remote Product” and choose the desired remote
-
Disconnect the cable, reinsert the battery, and reassemble the remote
-
Install the correct transponder chip and key blade
-
Program to the vehicle as you would with an OEM remote
✅ Ideal For:
-
Automotive locksmiths
-
Remote key replacement
-
Universal remote inventory
-
Toyota remote replacements
