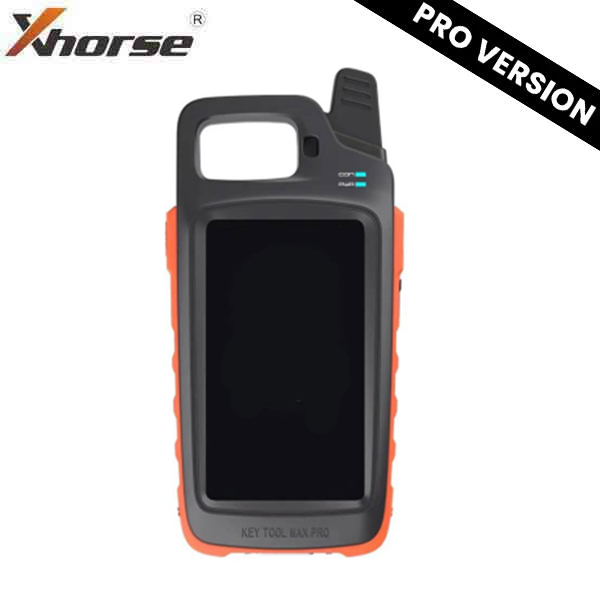

Xhorse - VVDI Key Tool Max Pro - Built-In OBD

The Xhorse VVDI Key Tool Max Pro (XDKMP0EN) is a professional all-in-one automotive key programmer and remote-generation tool. This package includes the illuminated OBD-to-DB15 cable, allowing supported immobilizer, diagnostic, and service functions directly through the vehicle OBD port without a separate Mini OBD Tool.

Key Features

• Built-in OBD module: supported immobilizer programming, vehicle diagnostics, throttle matching, TPMS functions, and maintenance-light reset.
• Integrated CAN FD: supports selected newer CAN FD vehicle applications.
• Remote and smart-key generation: generate supported Xhorse wired, wireless, and smart-key products.
• Transponder functions: identify, generate, edit, and clone supported transponders and Xhorse Super Chips.
• Remote renewal and RF testing: renew compatible remotes, detect frequency, and test remote signals.
• Battery testing: measure remote-battery voltage and detect leakage current using the included test cable.
• Access-card and garage-remote functions: identify, copy, or generate supported cards and fixed-code remotes.
• Key-cutting machine control: connects to compatible Xhorse Condor and Dolphin key-cutting machines.
• Wi-Fi and Bluetooth: wireless connectivity for updates and supported Xhorse workflows.

What’s Included

• 1 × Xhorse VVDI Key Tool Max Pro device

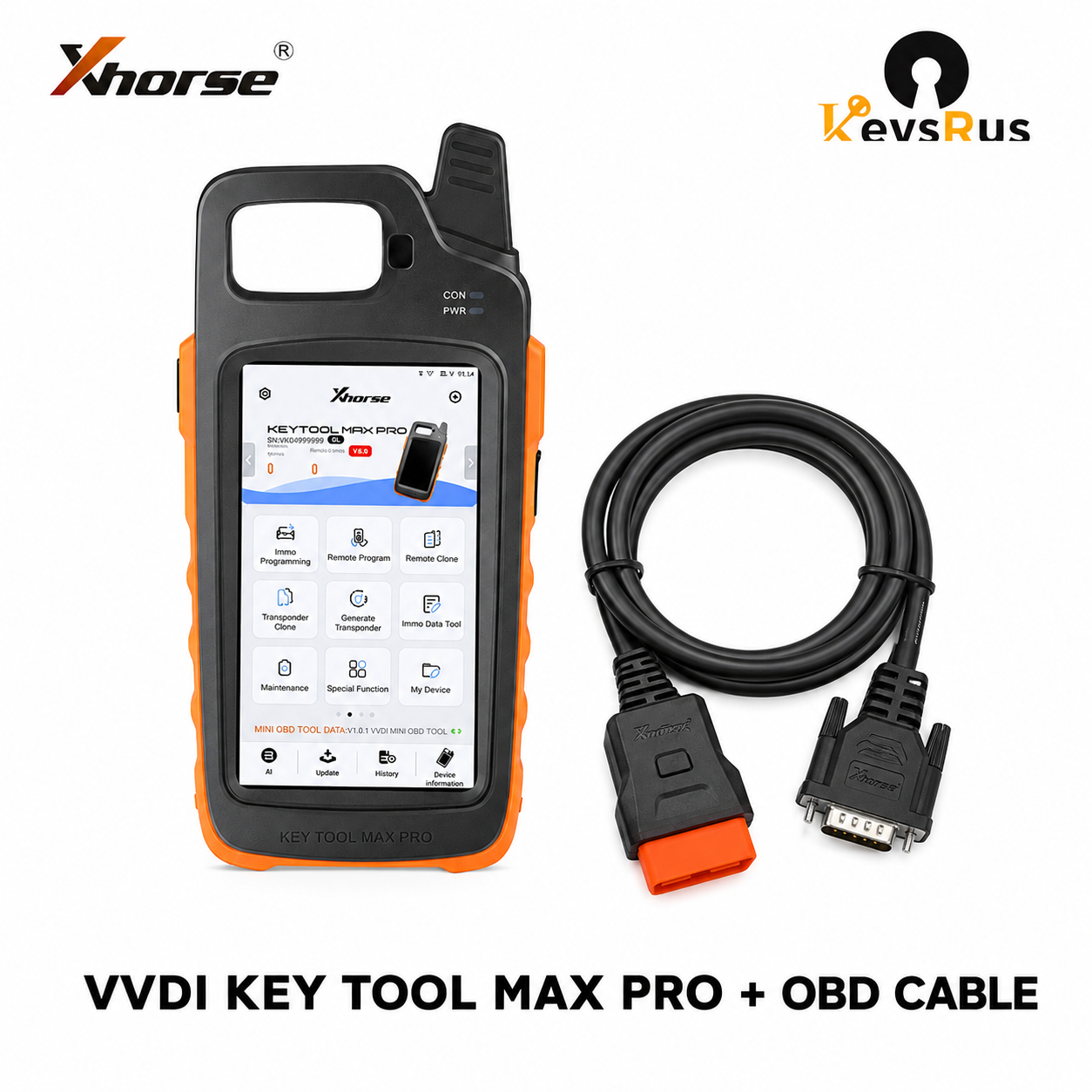

• 1 × Illuminated OBD-to-DB15 cable
• 1 × Remote programming cable
• 1 × Leakage-detection cable
• 1 × USB cable

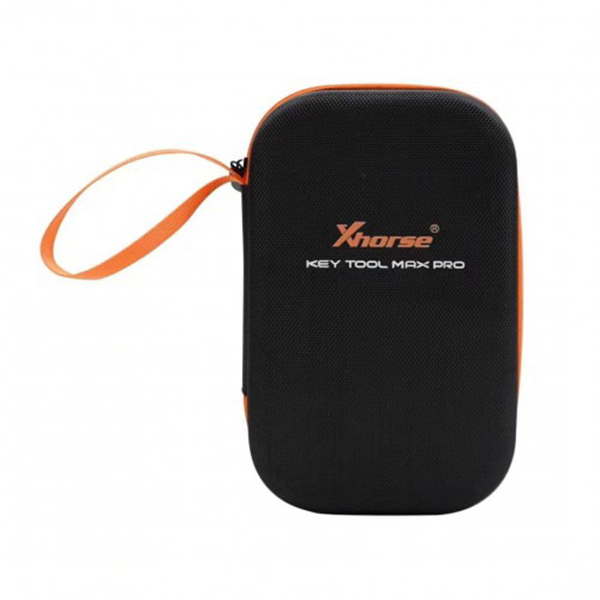

• 1 × Protective carrying case
• 1 × User manual

Technical Specifications

• Manufacturer part number: XDKMP0EN
• Processor: Quad-core CPU
• Memory: 1 GB RAM + 8 GB storage
• Display resolution: 1280 × 720
• Battery: 3375 mAh
• Camera: 8 MP
• Connectivity: Wi-Fi and Bluetooth 4.2 BLE
• Vehicle interface: Built-in OBD and CAN FD

Important Compatibility Note

Vehicle coverage and available functions vary by make, model, year, immobilizer system, region, adapters, account status, and installed software version. Some procedures may require additional accessories, tokens, online calculations, or an internet connection. Confirm current Xhorse coverage before purchasing for a specific vehicle.
