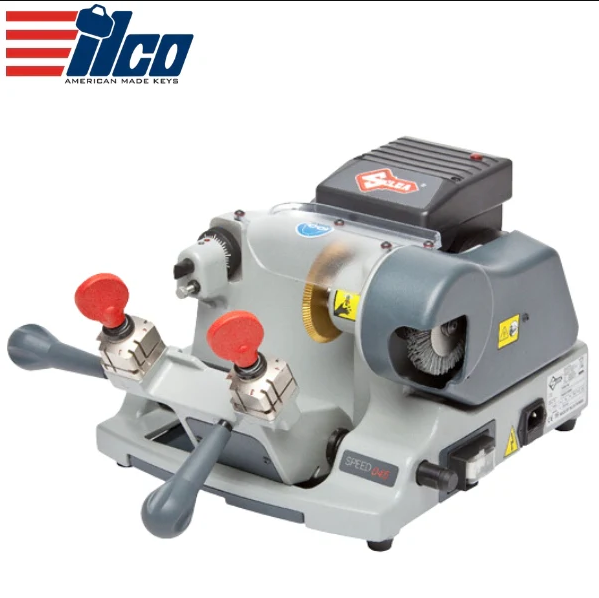

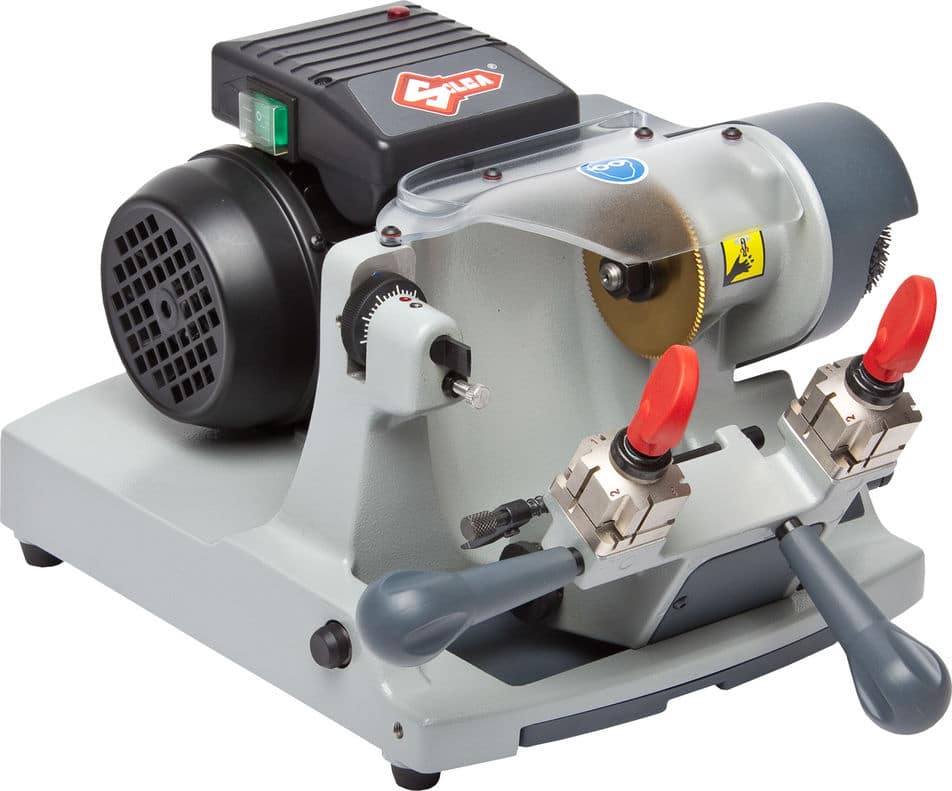

SILCA / ILCO SPEED 045 Manual Key Cutting Machine – Duplicator for Edge-Cut Keys

$1,795.00 CAD
$1,795.00 CAD
$1,795.00 CAD $1,885.00 CAD

Want next day delivery? Be quick!

I18n Error: Missing interpolation value "end_date" for "Ends on {{ end_date }}"
Up to $90 CAD off

The Speed 045

Four sided, nickel plated jaws for clamping the majority of all edge cut/flat type keys. Smooth rotation by simply twisting into position.
Slotted jaw surfaces accommodate tip stop bars and a rigid shoulder gauge design to allow for greater accuracy when loading and gauging keys,
Wide spacing 3 1/2” (88.9 mm) spacing between clamps accommodate large bow (head) and long blade keys, including flip style keys
Depth tracer system with micro adjustment for precise calibration in increments of .00098” (0.025mm)
TiN (Titanium Nitride) coated cutter for longer life and oxidation resistance
Nylon deburring brush
Electro-magnetic “main” safety switch with a separate cutter motor switch for easy access.
Large transparent cutter safety shield contains chips and provides a storage area for accessories
Large drawer-type  (chip) tray under the carriage for easy access
Mounting bracket included for securing the machine to counter
Two year warranty

The Speed 04X Series mechanical key duplicators are engineered and manufactured with a new look and many new improved features over the existing 04X series of machines. These new models will replace the current Performance HD Series of machines (040HD, 044HD, 045HD and 046HD)

SPEED 045 Manual Operation

The ideal and yet very economical choice in a basic duplicator for any key cutting outlet. Designed with all the Speed Series convenient features and details.

Technical Data

Power Supply: 120V-60Hz
Maximum absorbed power: 2.8 Amp, 200 Watt
Cutter motor:  single phase and speed
Movements:  by ball joint on rectified carriage
Tool Speed: 1350 rpm
Carriage Runs: 1.65" (42mm)

Standard Parts

Cutter:

TiN Coated

BC0599XXXX
D746382ZB

Brush:

Nylon, 5/8” (15.87 mm) bristles

BJ0929XXXX
D934958ZR

Dimensions:

Width:  15.75” (400 mm)
Depth: 18.1" (460 mm)
Height: 9.8” (250 mm)
Weight: 31 lbs. (14 kg)

Modern, open styling

The open styling of the Speed 04X line of machines allows for ease of cleaning. A large drawer-type  tray is located under the carriage to capture key shavings.  Mounting bracket included for ease in securing the machine to a work bench.

Four-sided jaws mean flexibility of use

Four-sided jaws easily clamps virtually all edge cut and flat style keys present on the market.  These jaws can be quickly and smoothly rotated by simply loosening the knob and rotating the jaw into the proper position. The 3-1/2" (88.9 mm) spacing between clamps accommodates large bow (head) and long blade keys including the flip style automotive and cruciform keys. Jaws are nickel plated for extended life.

Wear resistant cutter

The large cutter is TiN (Titanium Nitride) coated for long life and oxidation resistance

Finish keys perfectly

Nylon, soft-touch deburring brush bristles are perfect for the finishing of cut keys.

Optimized calibration and precise gauging

A depth tracer system with micro-adjustment feature provides fast, precise calibration in increments of .00098" (.025mm). The standard tracer works on all edge cut keys, including Sargent®.

Operator Safety

Electro-magnetic “main” safety switch (machine must be manually re-started after a power interruption). A separate cutter motor switch located on the side of the motor provides safe and easy access.

Belt/brush are covered and the large transparent cutter shield provides safety as well as storage for accessories.

2-Year Warranty
