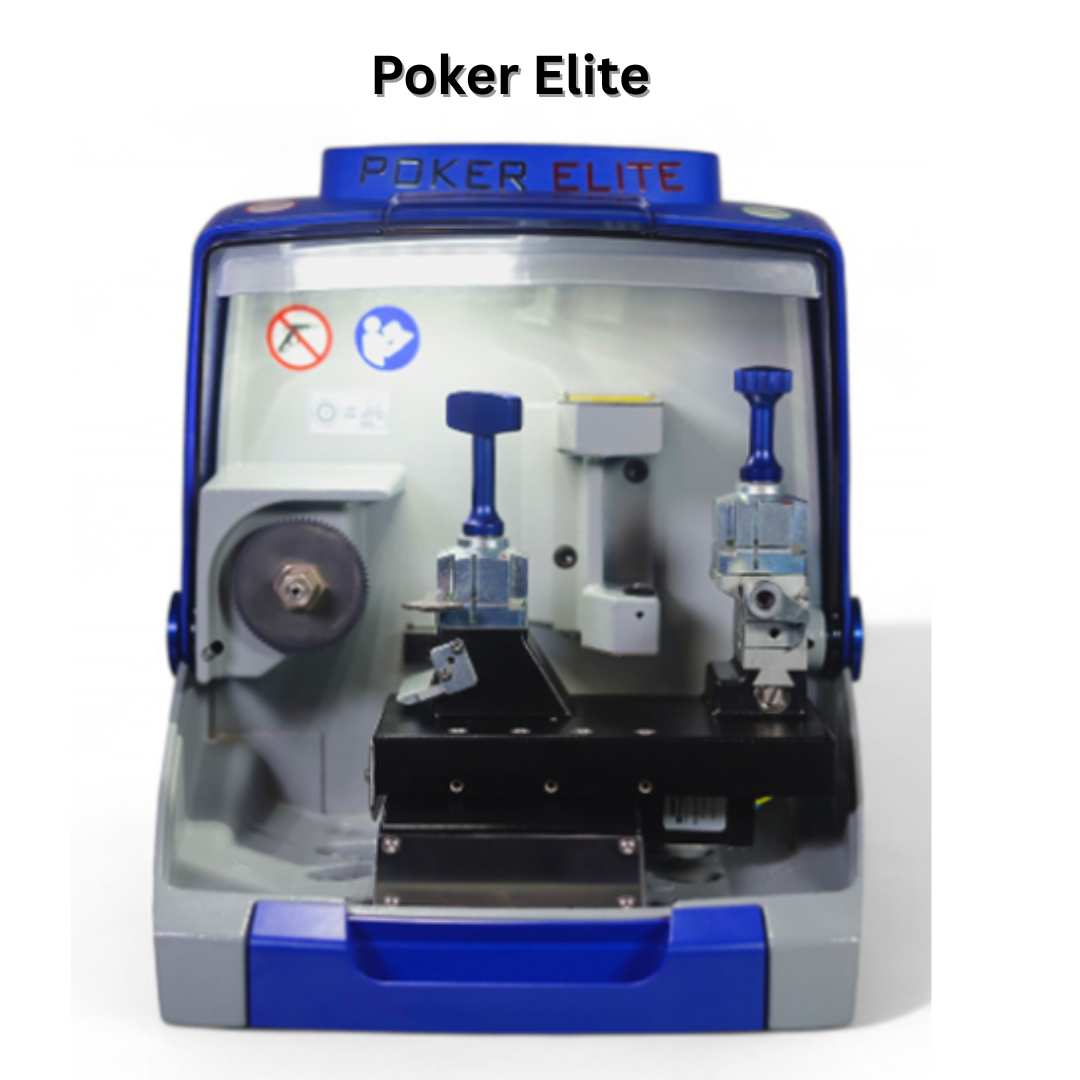

Ilco Poker Elite Automatic Key Cutting Machine
Duplicator for Flat, Vehicle & Cruciform Keys
Product Overview
The Ilco Poker Elite is a fully automated electronic key cutting machine designed for the precise duplication of flat residential and automotive keys — including single and double-sided cuts — as well as cruciform ("X"-profile) keys. Built around an optical laser reader, the Poker Elite reads and reproduces each key with high accuracy, taking the guesswork out of duplication.
Its compact, enclosed design keeps the workstation clean and organized, while an intuitive two-button interface makes it accessible for new operators without sacrificing professional-grade precision. Lightweight and portable, with an included fixing bracket, the Poker Elite is equally at home on a shop counter or mounted in a mobile locksmith van.
Key Features
- Fully automated operation — Extremely simple to use, with only two buttons: Start and Stop
- Laser reader technology — Ensures precise key reading and accurate, consistent duplication
- Four-sided rotating clamps — Sintered clamps with an exclusive rotation system accommodate a wide range of flat and cruciform keys
- Retractable protective shield — Keeps all shavings contained within the machine's compartment for a clean workspace
- Enclosed cutting area — Keeps the workbench clean and orderly during operation
- Removable chip swarf tray — Positioned below the carriage for quick, easy cleanup
- Built-in accessory tray — Convenient on-machine storage for tools and accessories
- Includes fixing bracket — Ideal for secure mounting in a mobile locksmith van
- Ergonomic lifting grips — Positioned below the machine body for easy transport
- Compact, lightweight, portable design — Fits easily into shops or mobile setups with limited space
Technical Specifications
| Machine Type | Fully automated electronic key duplicator |
| Key Types Duplicated | Flat residential & automotive keys (single/double-sided cuts), cruciform ("X"-profile) keys |
| Power Supply (Machine) | 24V DC, 5.5 Amp, 130W |
| Power Pack | 90–264V AC, 50/60Hz, 220W (MEANWELL GST220A24-R7B) |
| Cutter Motor | 24V DC |
| Cutter | U01W hard metal, coated |
| Cutter Speed | 1,860 RPM |
| Clamps | Sintered, four-sided rotating clamp |
| Movement | 2-axis, step motor driven, on rectified roller guides with special bushings |
| Axis Runs | X-axis: 30 mm; Y-axis: 54 mm |
| Width | 12.52" |
| Depth | 16.26" |
| Height | 13.39" |
| Weight | 35.27 lbs |
