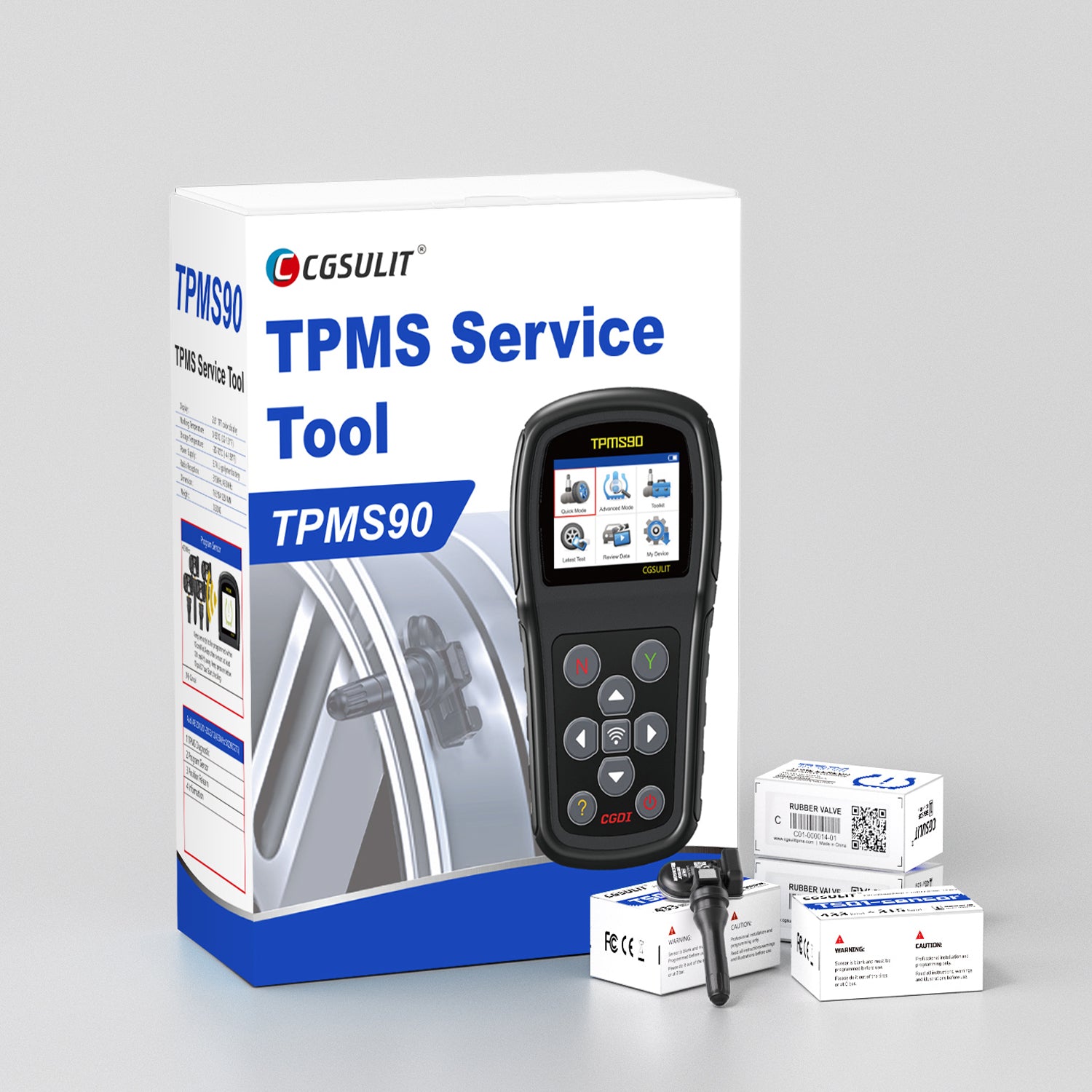

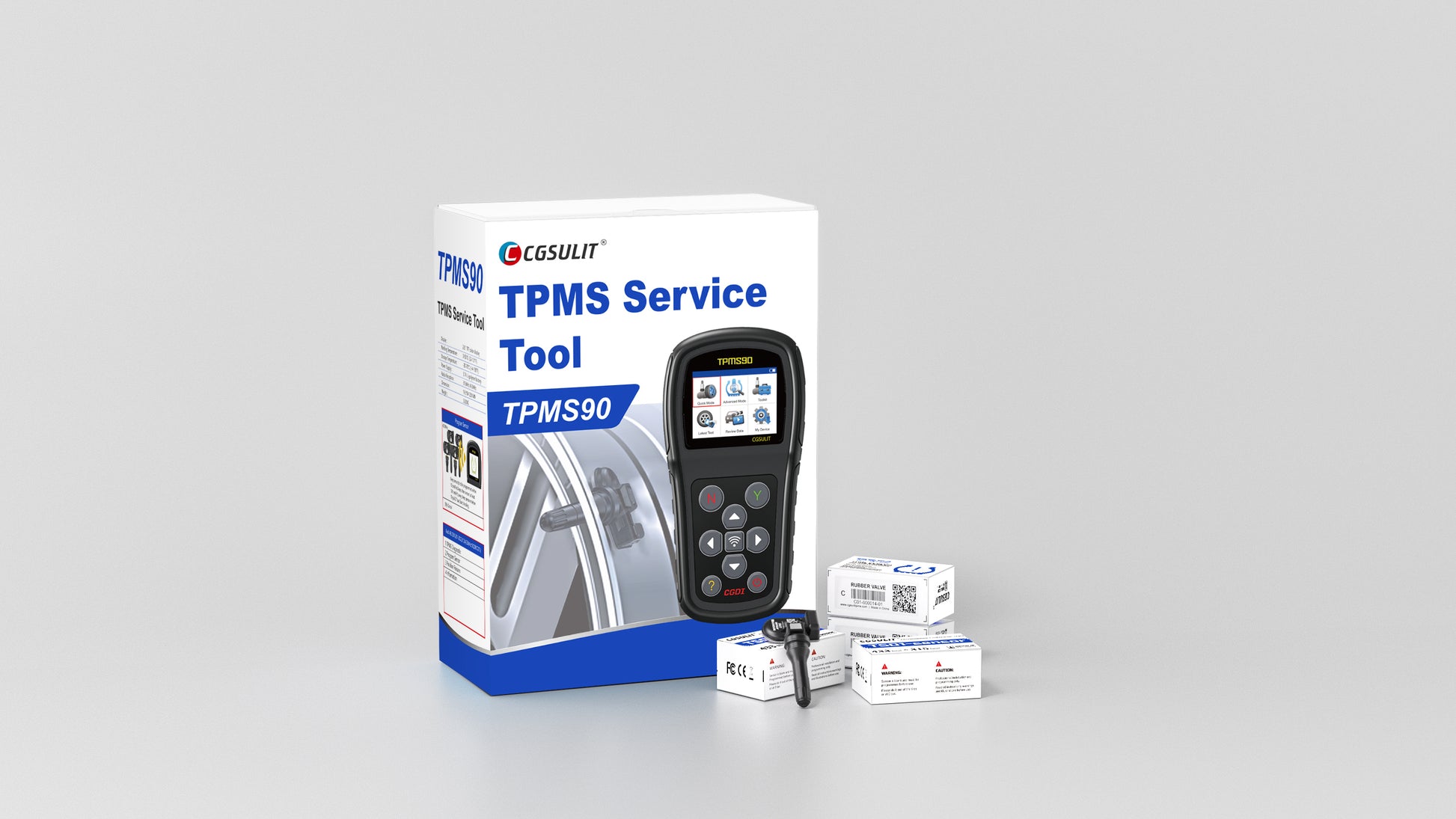

CGSULIT TPMS90 New Release – Advanced TPMS Relearn & Programming Tool – 315/433 MHz – TS01 Sensor Support – OBDII + CAN FD – Free Lifetime Updates via Wi-Fi/USB

The CGSULIT TPMS90 is a cutting-edge TPMS programming and diagnostic tool built for modern automotive workshops. Fully compatible with CGSULIT TS01 universal TPMS sensors (315/433 MHz), this powerful device supports sensor activation, programming, cloning, and relearning — with no annual fees and lifetime free updates via Wi-Fi or USB.

Now enhanced with CAN FD protocol support, TPMS90 can interface with newer vehicle platforms and offers advanced diagnostics for nearly all TPMS-equipped vehicles. It features 4 programming modes, key fob testing, full OBDII diagnostics, and an intuitive TPMS relearn procedure guide built into the tool.

Perfect for shops that need reliable, up-to-date TPMS service for a broad range of domestic, Asian, and European models.

🔧 Key Features:

• Dual Frequency Support: 315 MHz & 433 MHz TPMS sensor compatibility

• Works with CGSULIT TS01 Sensors

• Sensor Programming Modes:

  • Copy by OBD

  • Copy by Activation

  • Manual OE ID Input

  • Auto Create (1–16 Sensors)

• Sensor ID Functions:

  • Read Sensor ID via OBD

  • Scan and copy universal sensor IDs

  • Manual ID input

• Relearn Capabilities:

  • OBD Relearn

  • Stationary Relearn

  • Automatic Relearn (Drive-to-Learn)

  • Step-by-step relearn guide on tool

• TPMS System Diagnosis:

  • Read & clear TPMS DTCs

  • View live TPMS sensor data

  • Match sensor IDs to ECU

• Key Fob Test:

  • Verify remote key frequency and function

• Full OBD2 Coverage:

  • All 10+ OBD2 modes (including Mode 6)

  • Read/Clear codes, Live Data, I/M Readiness, O2 Monitor, DTC Lookup, and more

• Lifetime Free Updates via both Wi-Fi and USB

• Supports Latest Protocols: Including CAN FD

What’s Included:

• TPMS90 Main Unit
• OBD Diagnostic Cable
• USB Charging/Data Cable
• User Manual
• Warranty Card
• Outer Packaging Box

Technical Specifications:

• Display: 2.8” TFT color screen
• Battery: 3.7V Li-polymer rechargeable
• Frequency Support: 315 MHz / 433 MHz
• Operating Temp: 0°C to 55°C (32°F to 131°F)
• Connectivity: Wi-Fi & USB
• Protocols Supported: OBDII, CAN, CAN FD
• Dimensions: 201 × 107 × 42 mm
• Weight: 0.4 kg

 Vehicle Compatibility:

• Covers 98% of TPMS-equipped vehicles globally
• Compatible with OEM and aftermarket sensors
• Brands supported: Toyota, Honda, GM, Ford, Nissan, Hyundai, Kia, BMW, Subaru, Mercedes-Benz, and more
