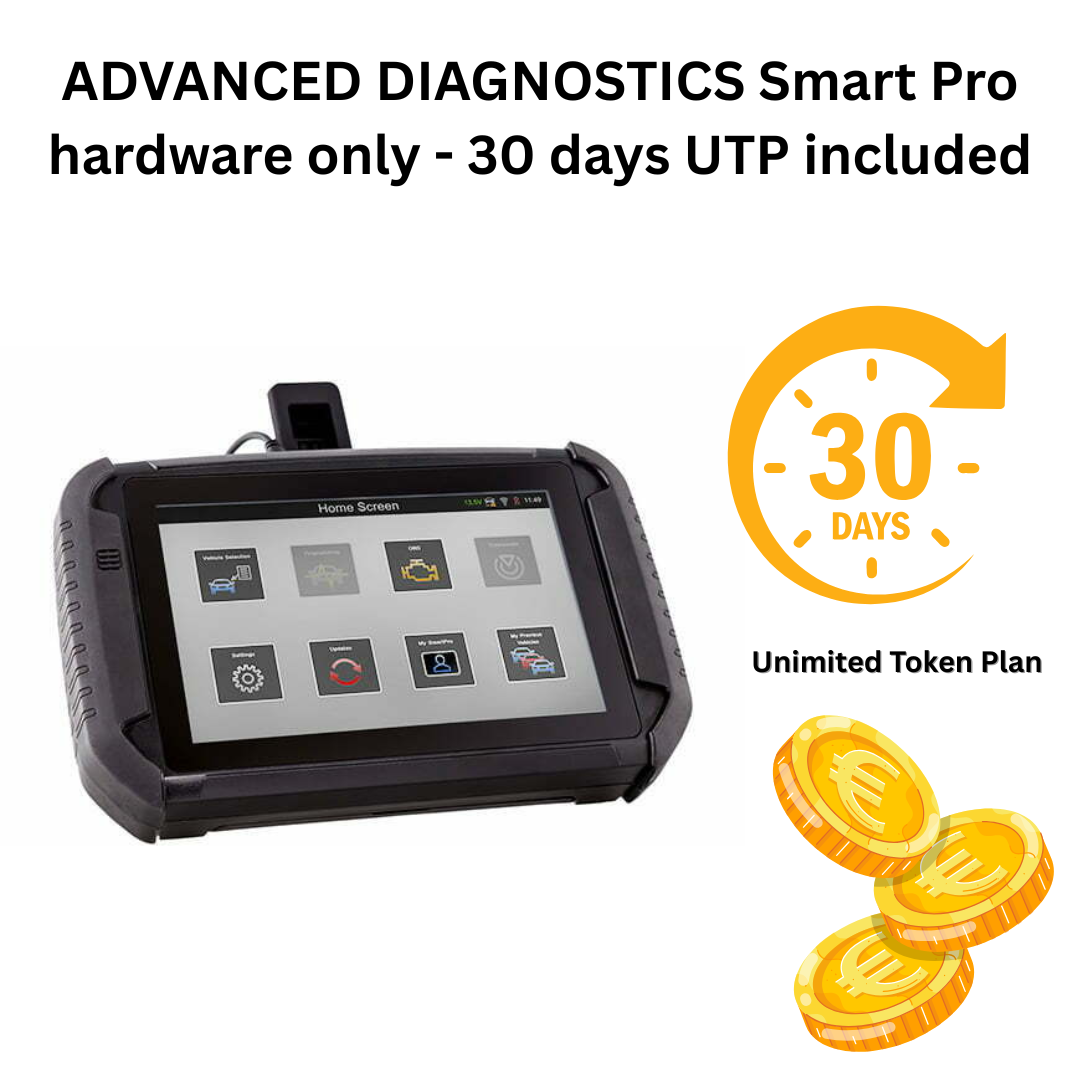

Advanced Diagnostics Smart Pro Key Programmer
Hardware Only with 30 Days UTP (Option 1)
Product Overview
The Advanced Diagnostics Smart Pro is the flagship vehicle key programmer from Advanced Diagnostics, the industry's foremost authority in automotive key programming. Powered by a quad-core processor and driven by Info Quest — Advanced Diagnostics' online key programming database covering over 5,000 vehicles worldwide — the Smart Pro delivers fast, accurate, and intuitive key, remote, and proximity fob programming through a responsive, icon-driven touchscreen interface.
The Smart Pro hardware unit with a 30-day Unlimited Token Plan (UTP) — Option 1 — giving you the complete device and unrestricted token usage for your first month, with the flexibility to choose Pay-As-You-Go, extended UTP subscriptions, or individual software purchases afterward.
Key Features
- Fast, integrated programming — Quad-core processor combines key programming and PIN reading into a single step for most makes, significantly reducing job time
- Extensive vehicle coverage — Info Quest database supports over 5,000 vehicle models across domestic, European, and Asian makes
- Intuitive touchscreen interface — 10.1" HD color touchscreen with icon-driven navigation and step-by-step guided procedures
- Comprehensive programming functions — Programs transponder keys, proximity/smart keys, and remote controls; supports ECU identification and read/clear fault codes (manufacturer dependent)
- All-in-one purchase flexibility — Choose Pay-As-You-Go, Unlimited Token Plan (UTP), or individual software module purchases — or combine them as needed
- Guided software updates — Update via Wi-Fi with step-by-step prompts, or connect to a PC via USB for downloads and security patches
- Built-in battery backup — Internal battery provides up to 2 hours of stand-alone use and protects against power interruptions mid-job
- Multi-language support — Interface available in multiple languages, selectable in settings
- Secure, dongle-free design — No external dongles or smartcards required for security authentication
- Complete kit included — Ships in a hard-body carry case with all necessary cables and connectors for immediate use
- 2-year warranty — Backed by Advanced Diagnostics' standard manufacturer warranty
Technical Specifications
| Processor | Quad-core ARM® |
| Memory | 2GB RAM |
| Storage | 32GB SSD |
| Screen | 10.1" color LCD, 1280 x 800, PCAP touch panel |
| Vehicle Support | 12V (cars), 24V (trucks) |
| External Ports | USB Type A & B, Smart Aerial port and slot, headphone jack, master cable OBD connector, battery charger port |
| Connectivity | Wi-Fi 802.11 b/g/n (2.4 GHz), Bluetooth 4.1 |
| Power Supply | 120V–230V AC, 50/60Hz, mains adapter included |
| Battery | Embedded 3.65V 5.3Ah Li-Ion (internal); user-replaceable 14.4V 3.2Ah Li-Ion — up to 2 hours stand-alone use |
| Dimensions | Width: 322 mm | Depth: 203 mm | Height: 68 mm |
| Weight | 2.9 kg (6.4 lbs) |
| Operating Temperature | 23°F to 104°F (-5°C to 40°C) |
| Storage Temperature | -4°F to 122°F (-20°C to 50°C) |
| Certifications | CE mark (European standards), CB, RoHS certified |
| Warranty | 2 years |
| Included Accessories | Hard-body carry case, mains cable, OBD cable, AC/DC power supply, USB cable, 50-way to 25-way converter, pin saver, USB flash drive with manual, printed quick-start guide |
