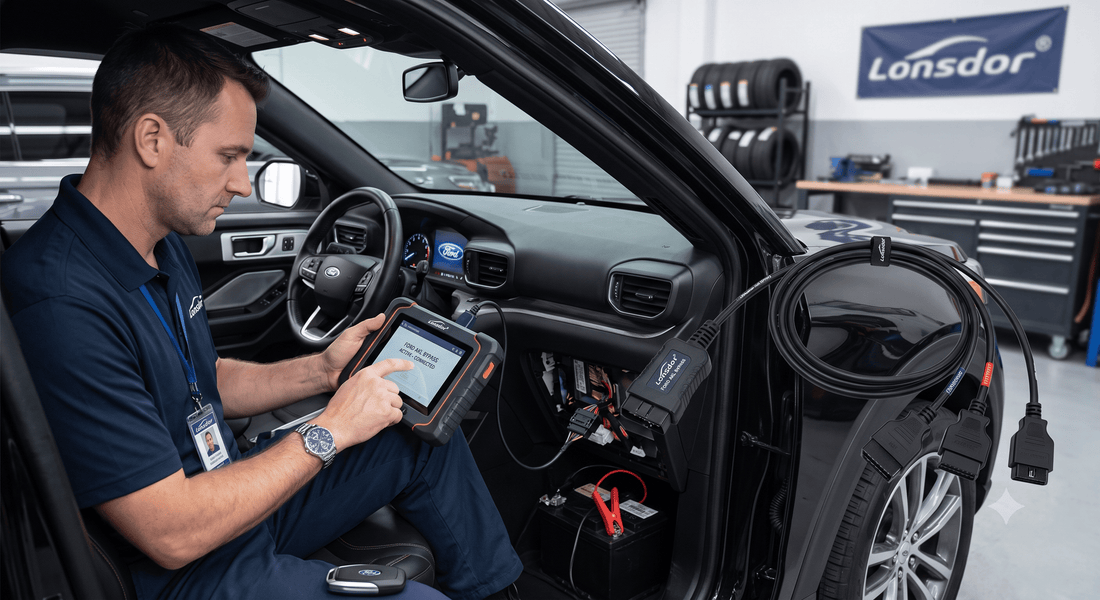

Lonsdor Ford AKL Bypass Cable: Professional Solution for Ford Lincoln All Keys Lost (AKL) Key Programming

How do fleet managers and automotive technicians reduce key programming costs by 60%?
Rather than ordering pre-coded OEM remotes tied to specific vehicle identification numbers (VINs) at dealership retail rates ($300–$700+), fleet maintenance facilities can utilize universal, multi-frequency PCB boards (e.g., Lonsdor LT20 series supporting 8A/4D chip logic). By leveraging on-site diagnostic key programmers (e.g., Lonsdor K518 Pro) to write key logic and perform direct OBD-II immobilizer pairing, fleet operators bypass external labor rates, eliminate towing fees ($80–$200), reduce downtime from days to minutes, and achieve up to 60% net savings per key replacement.

1. Technical Overview: The Cost Structure of Fleet Key Failures

In high-mileage vehicle fleets—including rental platforms, municipal service vehicles, and logistics vans—key replacements represent significant operational costs. OEM dealership replacements carry hidden expenses beyond the retail hardware price tag:

• Dealership Hardware Markup: High margins on dedicated, single-use part numbers.
• Diagnostic & Programming Fees: Flat 1-hour shop rates for simple 5-minute OBD key registration protocols.
• Asset Inactivity: Extended vehicle downtime while awaiting backordered OEM key assemblies.
• Towing & Site Recovery: Transport costs when all keys are lost (AKL scenarios).

By establishing an in-house automotive key cutting and programming station using universal key inventory, technicians maintain complete control over immobilizer provisioning.

2. Universal Smart Key Architecture vs. Dedicated OEM Hardware

Traditionally, servicing a diverse vehicle fleet required carrying dozens of distinct stock-keeping units (SKUs) based on individual FCC IDs, board configurations, and frequency output parameters.

Universal Smart Key PCBs (such as the Lonsdor LT20 series) consolidate these variants onto a single programmable board architecture:

• Transponder Chip Logic: Dual-Mode Switchable (8A / 4D / Page 4)
• Frequency Modulation: 312.09 MHz to 434.42 MHz (ASK & FSK)
• FCC ID Compatibility: Emulates HYQ14FBA, HYQ14FBB, 0020, 0410, 2110, etc.

Hardware & Diagnostic Specification Comparison

3. Technical Workflow: Programming Universal Smart Keys via OBD-II

To demonstrate the simplicity of in-house provisioning, here is the technical workflow for configuring a universal smart key for a late-model push-to-start vehicle:

Phase 1: Pre-Coding the Universal PCB

1. Connect the universal programmer (e.g., Lonsdor K518 Pro / KH100+) to WiFi.
2. Place the unprogrammed universal PCB (e.g., LT20-04) into the programmer antenna coil.
3. Navigate to Special Functions ➔ Generate Smart Key.
4. Select the matching vehicle target parameter (e.g., Toyota / Lexus 8A ➔ Board Number 0410 / Frequency 314.35 FSK).
5. Execute board generation to write chip logic and remote button configuration.

Phase 2: Vehicle Immobilizer (IMMO) Pairing

1. Connect the programming device to the vehicle's OBD-II port.
2. Select Immobilizer ➔ Auto-Identify Vehicle System.
3. Perform Backup IMMO Data to secure the vehicle's EEPROM/security file.
4. Select Add Smart Key or All Keys Lost.
5. When prompted, hold the newly generated universal key against the Engine Start/Stop button until the vehicle chiming indicates successful transponder registration.
6. Verify remote lock/unlock function and engine start sequence.

4. Mechanical Key Shell Rehabilitation & Maintenance

In many commercial service calls, key failures stem from physical shell fractures, button pad degradation, or key blade wear—while the internal PCBA remains intact:

• Shell Transfer: Transferring an existing OEM circuit board into a high-impact aftermarket key shell restores usability for under $15.00 CAD.
• Mechanical Blade Decoding: If the mechanical emergency key blade is lost or worn, technicians can decode the door lock cylinder using a Lishi 2-in-1 tool and cut a fresh blade on a high-precision key cutting machine.

Frequently Asked Questions (FAQ)

Q1: Do universal PCB boards support rolling code security protocols?

Yes. High-tier universal smart keys utilize adaptive firmware that emulates OEM cryptographic seed codes, rolling encryption algorithms, and frequency responses, ensuring full compatibility with factory immobilizer and anti-theft systems.

Q2: What happens to lost keys when a replacement is programmed on-site?

When performing an OBD immobilizer program or All Keys Lost (AKL) procedure, the programmer can clear all previously registered key IDs from the immobilizer control module (ICM). This prevents unauthorized access if a lost key is subsequently found.

Q3: What minimum equipment is required to establish an in-house fleet key center?

A minimal professional setup requires:

1. Multi-System Key Programmer: An OBD-II diagnostic programmer supporting major vehicle brands (e.g., Lonsdor K518 Pro).
2. Core Universal Key Inventory: Multi-frequency smart key PCBs and universal remotes.
3. Key Cutting Unit: An automated or manual key cutting machine for emergency mechanical key blades.
