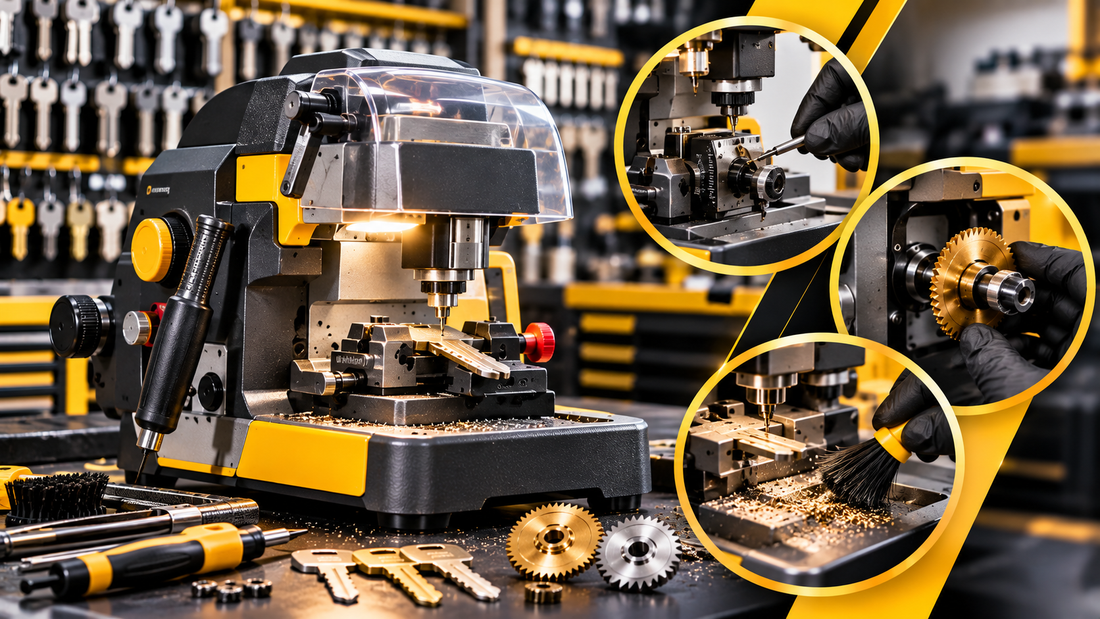

Key Cutting Machine Maintenance Guide: Calibration, Cutter Replacement, and Care

A key cutting machine is one of the most important tools in any locksmith shop. Whether you're duplicating standard residential keys or working with automotive keys, the accuracy and condition of your machine can directly affect the quality of every key you produce.

Regular maintenance helps keep your key cutting machine accurate, reduces unnecessary wear, and can help prevent frustrating miscuts and unexpected downtime.

In this guide, we'll cover three essential areas of key cutting machine maintenance: calibration, cutter replacement, and routine care.

Why Key Cutting Machine Maintenance Matters

Even a high-quality key cutting machine experiences normal wear over time. Cutters can gradually become dull, metal chips can accumulate around working components, and calibration may eventually require adjustment.

A poorly maintained or incorrectly calibrated machine may produce cuts that are too deep, too shallow, or improperly positioned. Establishing a simple maintenance routine can help you:

• Maintain consistent cutting accuracy
• Reduce miscut keys and wasted blanks
• Identify worn components earlier
• Keep moving parts operating smoothly
• Reduce unexpected downtime
• Extend the useful life of your equipment

1. Keep Your Key Cutting Machine Clean

Key cutting naturally produces metal chips, dust, and filings. Allowing this debris to accumulate around the vise, carriage, cutter, or other moving components can interfere with normal operation.

Make cleaning part of your regular shop routine. After cutting sessions, remove loose metal chips from the working area with an appropriate brush.

Pay particular attention to:

• Vise jaws and clamps
• Cutter area
• Carriage and guides
• Key positioning surfaces
• Tracers and adapters

Important: Some manufacturers advise against using compressed air because it may push metal chips and debris into internal or moving components. Always follow the cleaning instructions provided for your specific machine.

Before cleaning or performing maintenance, switch off and disconnect the machine from its power source when instructed by the manufacturer.

2. Check Your Machine's Calibration

Calibration helps ensure that the machine's cutting position and depth correspond correctly to the intended key specifications.

If calibration is incorrect, duplicate keys may be cut too deeply, too shallowly, or in the wrong position, potentially resulting in keys that do not operate the lock correctly.

When Should You Check Calibration?

Calibration should be checked according to the manufacturer's recommended maintenance schedule and whenever you notice a change in cutting accuracy.

It is also important to check calibration after removing, reinstalling, or replacing a cutter if required by your machine manufacturer.

Possible signs that your machine may need a calibration check include:

• Keys consistently being cut too deep or too shallow
• Duplicate keys that do not operate smoothly
• Repeated miscuts despite correct key positioning
• Inconsistent results between duplicate keys
• Changes in cutting accuracy after cutter replacement

How Do You Calibrate a Key Cutting Machine?

There is no universal calibration procedure for every key cutting machine.

Depending on the model, calibration may involve adjustment keys, calibration gauges, tracer adjustments, software-guided procedures, or automatic calibration functions.

Always use the calibration procedure and tools specified for your exact machine model. This is especially important when working with electronic and computerized key cutting machines.

3. Inspect Your Cutter Regularly

The cutter performs the actual work of removing material from the key blank, so its condition has a major impact on cutting quality.

As a cutter wears, you may begin to notice changes in machine performance or in the quality of finished keys.

Possible signs of a worn or dull cutter include:

• Increased cutting time
• Unusual or noticeably louder cutting noise
• Excessive burrs on freshly cut keys
• Rougher cut surfaces
• More pressure being required during cutting
• Inconsistent cutting results

If you notice these symptoms, inspect the cutter and determine whether cleaning, adjustment, or replacement is necessary.

4. Replace Worn Cutters Correctly

If a cutter becomes worn, chipped, damaged, or excessively dull, it may need to be replaced with the correct cutter specified for your machine.

Before replacing a cutter, disconnect the machine from its power source and consult the manufacturer's instructions.

Cutter removal and installation procedures can vary significantly between machine models. The cutter type, retaining hardware, rotation direction, and installation procedure must all match the manufacturer's specifications.

After installing a replacement cutter:

1. Make sure the cutter is properly installed and secured.
2. Inspect the surrounding components for debris or damage.
3. Check or perform calibration as required by the manufacturer.
4. Perform a test cut using an appropriate key blank.
5. Verify the finished key before returning the machine to regular use.

5. Take Care of Clamps and Vise Jaws

Accurate key cutting depends on more than just the cutter. The key blank must also be positioned securely and correctly.

Dirt, metal filings, worn clamping surfaces, or improper positioning can affect how the key blank sits in the machine.

Regularly inspect and clean the:

• Vise jaws
• Clamps
• Key guides
• Tracers
• Adapters
• Positioning surfaces

Removing debris before positioning a key blank can help maintain consistent alignment and cutting accuracy.

6. Lubricate Only Where Recommended

Lubrication requirements vary between key cutting machines. Some machines may require periodic lubrication of specific shafts, slides, or moving components, while other parts may use permanently lubricated bearings that should not receive additional lubricant.

More lubricant is not necessarily better. Applying the wrong lubricant or lubricating components that are designed to remain dry can potentially affect machine performance.

Always follow the manufacturer's recommendations regarding:

• Which components require lubrication
• The correct type of lubricant
• How much lubricant to apply
• Recommended maintenance intervals

7. Don't Force the Machine

Good operating technique is also an important part of key cutting machine maintenance.

Avoid forcing the key blank aggressively into the cutter or applying unnecessary pressure during the cutting process. Excessive force can contribute to premature cutter wear and may negatively affect the quality of the finished key.

If your machine suddenly requires considerably more effort to make a cut, inspect the cutter and other components rather than simply applying additional pressure.

Simple Key Cutting Machine Maintenance Checklist

Regularly

• Remove key chips and metal debris
• Clean the vise jaws and clamps
• Inspect the cutter for wear or damage
• Keep key positioning surfaces clean
• Watch for changes in cutting quality

Periodically

• Check cutting accuracy and calibration
• Inspect cutters and other wear components
• Inspect the carriage and moving components
• Lubricate only where recommended
• Review your manufacturer's maintenance schedule

After Replacing a Cutter

• Confirm the correct cutter has been installed
• Make sure it is properly secured
• Check or perform calibration as required
• Make a test cut
• Verify cutting accuracy before normal operation

Better Maintenance Means More Reliable Key Cutting

Maintaining your key cutting machine doesn't have to be complicated. A consistent routine of cleaning, inspecting the cutter, monitoring calibration, and following the manufacturer's maintenance recommendations can make a noticeable difference in cutting consistency and equipment reliability.

Most importantly, remember that maintenance procedures vary between machine models. Always consult the operating manual for your specific machine before adjusting calibration, replacing cutters, lubricating components, or performing internal maintenance.
